SMTP ( 25 , 587 , 465 )

Resources

• SMTP Deep Dive
  • Infrastructure Explain : https://www.youtube.com/watch?v=aria5gmElSc&t=77s
  • SMTP codes : [https://serversmtp.com/smtp-error/](https://serversmtp.com/smtp-error/
• Exploitation
  • By tahirgozuacik : https://medium.com/@tahirgozuacik/understand-enumerate-and-exploit-smtp-with-thm-example-34e3eb3806b6
  • By hackingarticles : https://www.hackingarticles.in/4-ways-smtp-enumeration/
  • By luemmelsec : https://luemmelsec.github.io/Pentest-Everything-SMTP/
  • By swlh : https://medium.com/swlh/internal-information-disclosure-using-hidden-ntlm-authentication-18de17675666
• Examples
  • By hackerone : https://hackerone.com/reports/2264982

Cheat Sheet

• By viperone : https://viperone.gitbook.io/pentest-everything/everything/ports/25-smtp
• By secybr : https://secybr.com/posts/smtp-pentesting-best-practices/#smtp-spoofing
• By snovvcras.sh : https://ppn.snovvcra.sh/pentest/perimeter/smtp

Commands

• Discovery

  nmap 10.129.14.128 -sC -sV -p25

• Manually Connect & Banner Grab
  • Use telnet or netcat to connect to the SMTP port and inspect the banner, which can reveal the software version.

    telnet 10.129.14.128 25
    nc -nv 10.129.192.136 25

• Check for TLS/SSL Support
  • Use openssl to test for secure connections on ports 465 (SMTPS) and 587 (Submission with STARTTLS).

    # Test implicit SSL/TLS on port 465
    openssl s_client -crlf -connect smtp.mailgun.org:465

    # Test STARTTLS on port 587
    openssl s_client -starttls smtp -crlf -connect smtp.mailgun.org:587

    # Get the mx server
    dig +short mx google.com

• Audit SMTP Commands with Nmap
  • Use an Nmap script to see which SMTP commands the server supports. Look for VRFY and EXPN.

    nmap -p25 --script smtp-commands 10.129.192.136

• Test for Open Relay
  • Use Nmap’s script to check if the server is an open relay. This is a critical security check.

    nmap 10.129.14.128 -p25 --script smtp-open-relay -v

• Bruteforcing

      hydra -l root -P passwords.txt [-t 32] <IP> ssh
  	ncrack -p 22 --user root -P passwords.txt <IP> [-T 5]
  	medusa -u root -P 500-worst-passwords.txt -h <IP> -M ssh

• Check for NTLM Authentication
  • Manually check if AUTH NTLM is offered.

    > HELO test
    > AUTH NTLM
    > TlRMTVNTUAABAAAAB4IIAAAAAAAAAAAAAAAAAAAAAAA=


  • Use an Nmap script to gather NTLM information.

    nmap -sS -v --script=*-ntlm-info --script-timeout=60s 10.129.192.136

  • SMTP Commands

    #HELO
    It’s the first SMTP command: is starts the conversation identifying the sender server and is generally followed by its domain name.
    #EHLO
    An alternative command to start the conversation, underlying that the server is using the Extended SMTP protocol.
    #MAIL FROM
    With this SMTP command the operations begin: the sender states the source email address in the “From” field and actually starts the email transfer.
    #RCPT TO
    It identifies the recipient of the email; if there are more than one, the command is simply repeated address by address.
    #SIZE
    This SMTP command informs the remote server about the estimated size (in terms of bytes) of the attached email. It can also be used to report the maximum size of a message to be accepted by the server.
    #DATA
    With the DATA command the email content begins to be transferred; it’s generally followed by a 354 reply code given by the server, giving the permission to start the actual transmission.
    #VRFY
    The server is asked to verify whether a particular email address or username actually exists.
    #TURN
    This command is used to invert roles between the client and the server, without the need to run a new connaction.
    #AUTH
    With the AUTH command, the client authenticates itself to the server, giving its username and password. It’s another layer of security to guarantee a proper transmission.
    #RSET
    It communicates the server that the ongoing email transmission is going to be terminated, though the SMTP conversation won’t be closed (like in the case of QUIT).
    #EXPN
    This SMTP command asks for a confirmation about the identification of a mailing list.
    #HELP
    It’s a client’s request for some information that can be useful for the a successful transfer of the email.
    #QUIT
    It terminates the SMTP conversation.

Notes

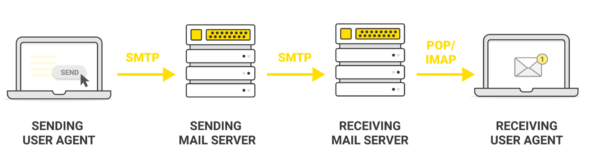

Working SMTP Flow Diagram

graph TD
    subgraph You
        A(["MUA (You / Email Client)"])
    end

    subgraph Your Company's Server
        B["MSA (Mail Submission Agent)"]
        C["MTA (Mail Transfer Agent)"]
    end

    subgraph Internet
        D["DNS Server"]
        E["Recipient's Mail Server"]
    end

    A -- "User hits 'Send'" --> B
    B -- "Checks credentials (SMTP-Auth)" --> C
    C -- "Looks up recipient's address" --> D
    D -- "Returns IP address" --> C
    C -- "Transfers email" --> E

    style A fill:#cde4ff
    style E fill:#d5f5d5

Configration file : /etc/postfix/main.cf
